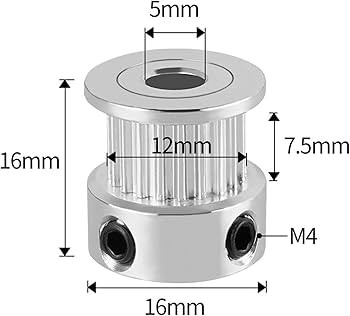

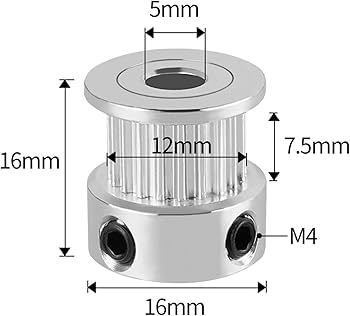

پولی تسمه تایمینگ 5M-HT

برای کسب اطلاعات بیشتر به کاتالوگ مراجعه فرمایید.

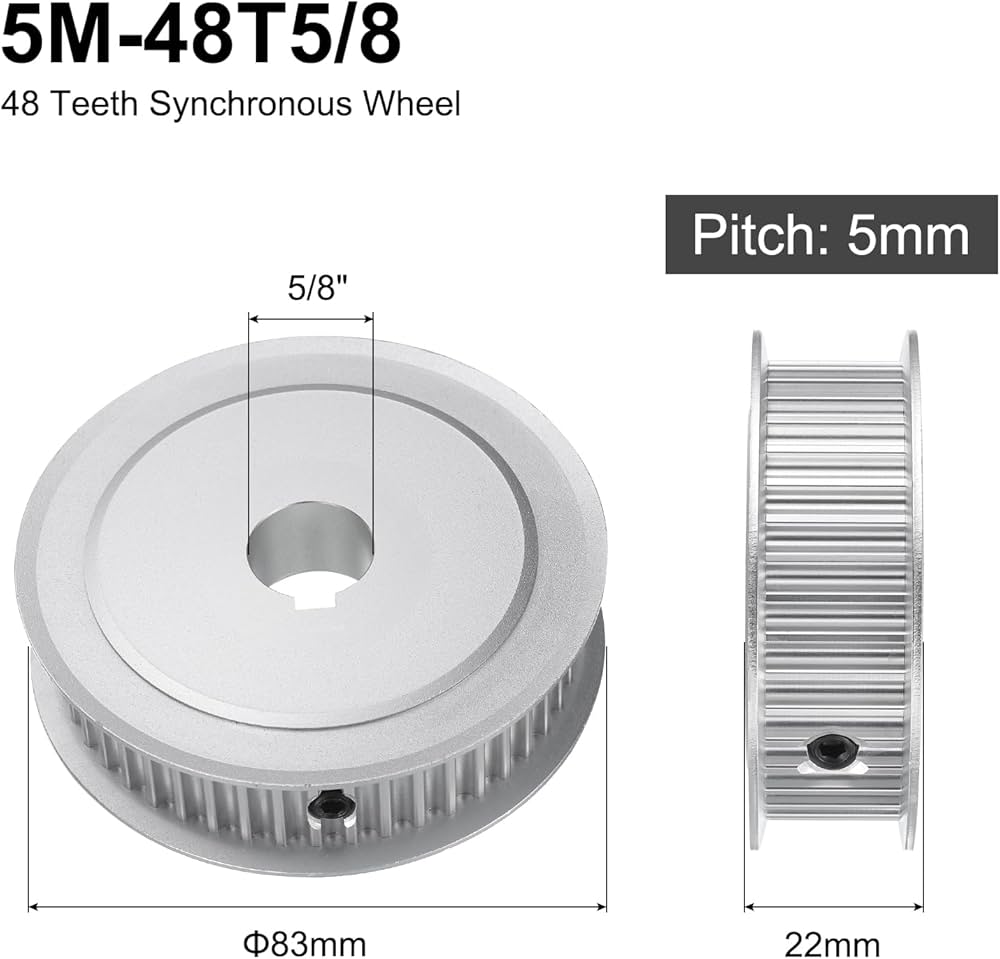

5mm Pitch (HT) for 15mm and 25mm Wide Belts
H
L
O.D.
TYPE 6
TYPE 6F
F E
Nominal Dimensions (in)
Bore
8mm Pitch (HT) for 20mm and 30mm Wide Belts
Nominal Dimensions (in)
Bore
14mm Pitch (HT) for 85mm and 115mm Wide Belts
Nominal Dimensions (in)
Bore
15mm F Dimension = 0.84"
P32-5M-15 6F 32 2.005 1.960 2.160 1/2 1-11/32 1-9/16 1/2 .88 .84
P34-5M-15 6F 34 2.130 2.085 2.295 1/2 1-11/32 1-11/16 1/2 1.00 .93
P36-5M-15 6F 36 2.256 2.211 2.410 1/2 1-11/32 1-13/16 1/2 1.12 1.03
25mm F Dimension = 1.23"
P32-5M-25 6F 32 2.005 1.960 2.165 1/2 1-23/32 1-9/16 1/2 .88 1.19
P34-5M-25 6F 34 2.130 2.085 2.290 1/2 1-23/32 1-11/16 1/2 1.00 1.38
P36-5M-25 6F 36 2.256 2.211 2.415 1/2 1-23/32 1-13/16 1/2 1.12 1.56
20mm F Dimension = 1-5/32"
P22-8M-20 6F 22 2.206 2.152 2.559 5/8 1-3/4 1-5/8 1/2 1-3/16 1.1
30mm F Dimension = 1-17/32"
P22-8M-30 6F 22 2.206 2.152 2.559 5/8 2-1/8 1-5/8 1/2 1-3/16 1.4
P24-8M-30 6F 24 2.406 2.352 2.756 5/8 2-1/8 1-13/16 1/2 1-1/4 1.8
P26-8M-30 6F 26 2.607 2.553 2.953 5/8 2-1/4 2 1/2 1-1/4 2.2
P28-14M-85 D1F 28 4.912 4.808 5.56 1 4 3-11/16 1-1/4 2-11/16 17
P29-14M-85 D1F 29 5.088 4.983 5.56 1 4 3-11/16 1-1/4 2-11/16 18
P28-14M-115 D1F 28 4.912 4.808 5.56 1-1/4 5 3-11/16 1-1/4 2-11/16 21
P29-14M-115 D1F 29 5.088 4.983 5.56 1-1/4 5 3-11/16 1-1/4 2-11/16 23
